How to use Open API


Open API is a new feature that allows you to access data and manage your user accounts and computers. You can also use the Open API to develop apps that integrate Splashtop On-Prem functionality into your own corporate environment. Please follow the below instructions to apply for an Open API application for your team.

For more details, please refer to the API reference or download Splashtop_OPEN_API.yaml


  • Splashtop Gateway v3.24.0 or higher
  • Open API is enabled in your license

Configuration flow

1. Make sure that Open API in your license is enabled. If you have any questions, please contact sales for more information.

2. Log in to your Gateway with the Team Owner’s credential.

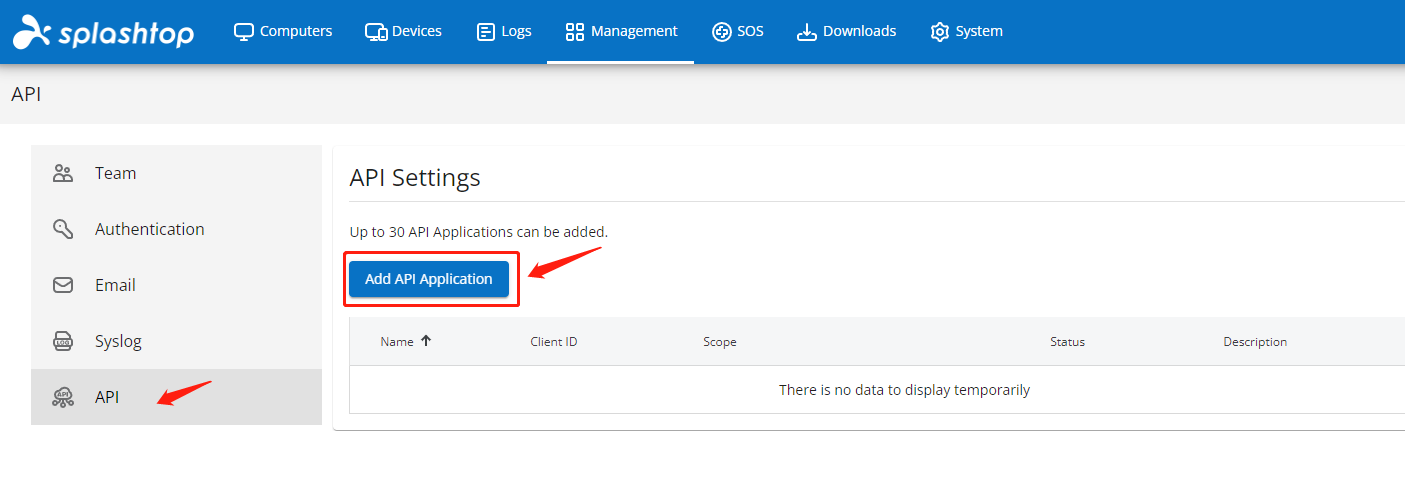

3. Go to Management > Team Settings > API, and Click Add API application button on API Settings page.

4. Enter API Application Name and configure the API permission (read or write), then click Add button.

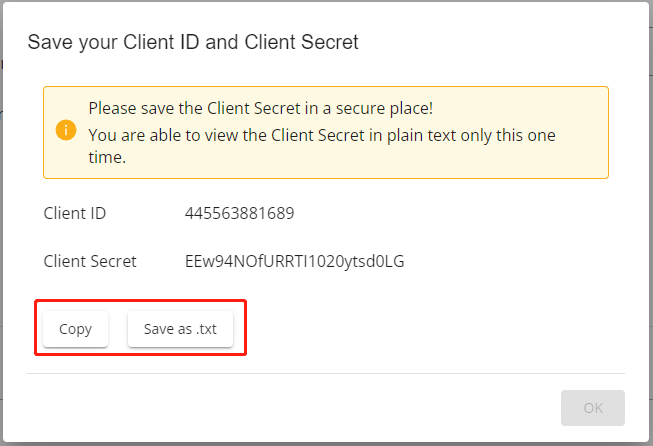

5. Click Copy or Save as .txt to save Client ID and Client Secret in a secure place, then click OK.

API functions

The API uses OAuth 2.0 and REST-based for authentication and JSON for data communication. The API functions include:

  • User management
    • Getting user list
    • Creating a new Gateway user
    • Managing the information for a single user, including getting and updating information (Status, Web access, SOS)
    • Managing user's access permission, including getting and updating access permission
  • Computer management
    • Getting computer list
  • Group management
    • Getting group list
    • Getting the information for a single group
    • Getting the list of all users in a single group
    • Getting the list of all computers in a single group
    • Managing group's access permission, including getting and updating access permission
  • Schedule management
    • Getting schedule access information

API rate limit

Each API has a limit of 200 calls per minute.


API Documentation
