Virtual display is a feature that allows you to extend your monitor with up to two additional virtual displays or resolve headless display issues.
Please kindly understand that this feature is currently in an experimental phase.
Requirements
- Windows 10 or higher
- Splashtop Streamer version 3.6.8.0. or newer
- Virtual machines (VMs) are not supported
- Compatibility limited to GPUs manufactured by Intel, AMD, and Nvidia
Supported resolutions
| 3840 x 2160 3840 x 1600 2560 x 1440 2560 x 1080 |
1920 x 1200 1920 x 1080 1600 x 1200 1600 x 900 |
1440 x 900 1400 x 1050 1280 x 1024 1280 x 960 |
1280 x 800 1280 x 720 1024 x 768 800 x 600 |
Get started

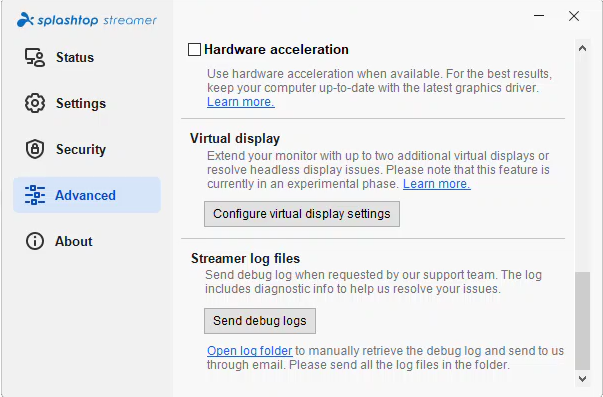

- Open Splashtop Streamer > Advanced > Virtual display
>
- Click "Configure virtual display settings"
- Virtual display configuration window will show up:

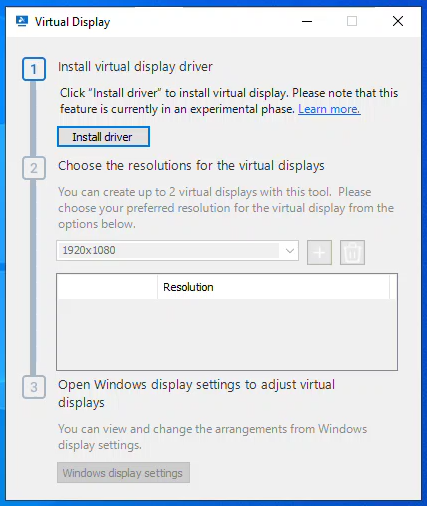

- Install the virtual display driver

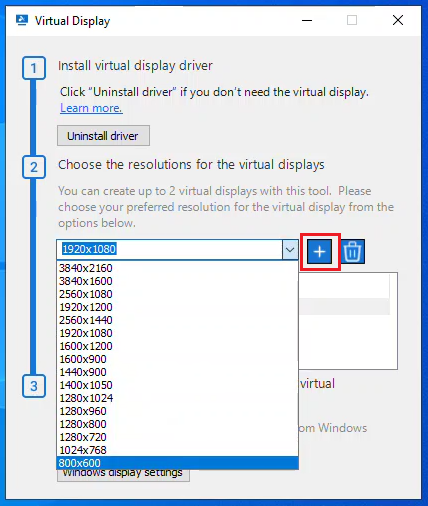

- Select the resolution for virtual displays, then click "
"

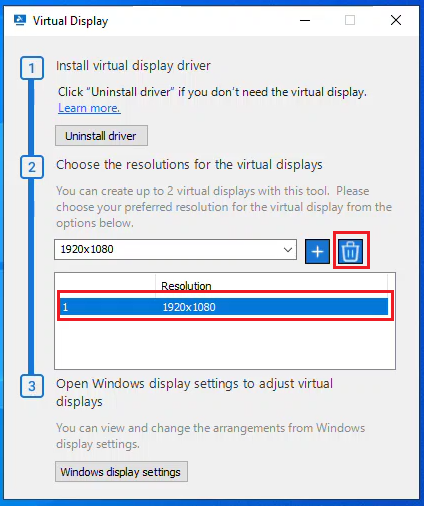

If you want to remove the created virtual display, select the resolution, click"":

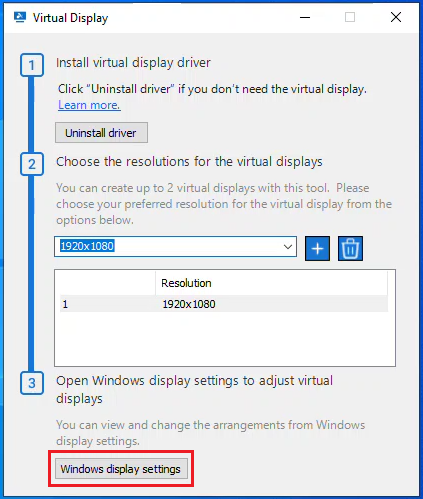

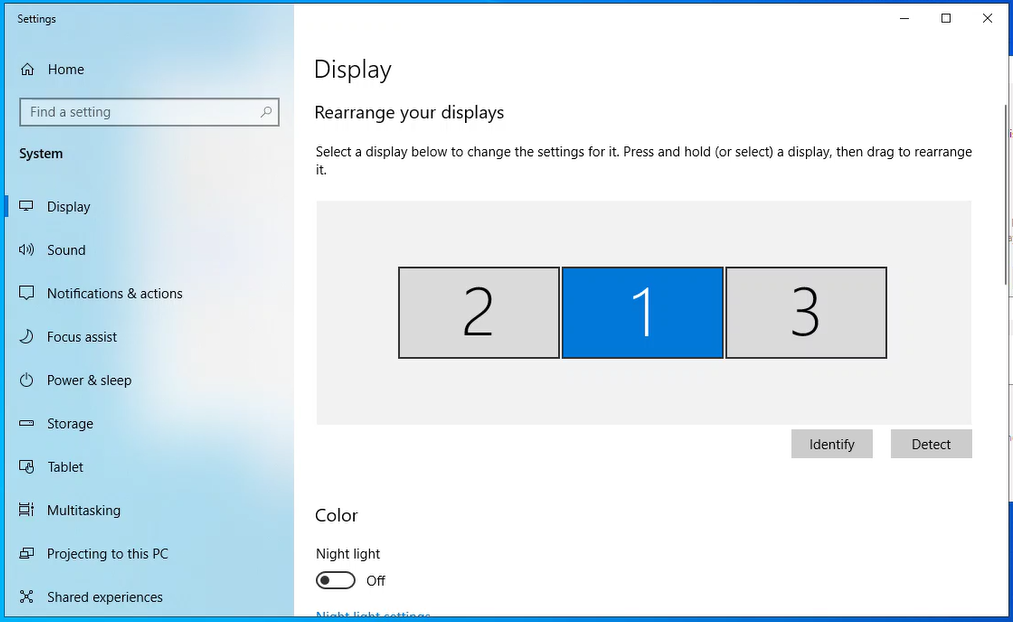

- Click "Windows display settings" if you want to adjust the arrangement of the displays
Add monitor failed
Virtual display driver exclusively supports GPUs from Intel, AMD, and Nvidia.
Limitation after signing out Windows accounts
When signing out of a Windows account:
-
Created virtual displays will be removed
-
Click "Configure virtual display settings" but nothing happens
When attempting to click "Configure virtual display settings" on Splashtop Streamer after signing out, the virtual display configuration window may not open as expected. To resolve this issue, restart the Splashtop Streamer and try the configuration process again.
How to uninstall virtual display driver when your trial/subscription is expired

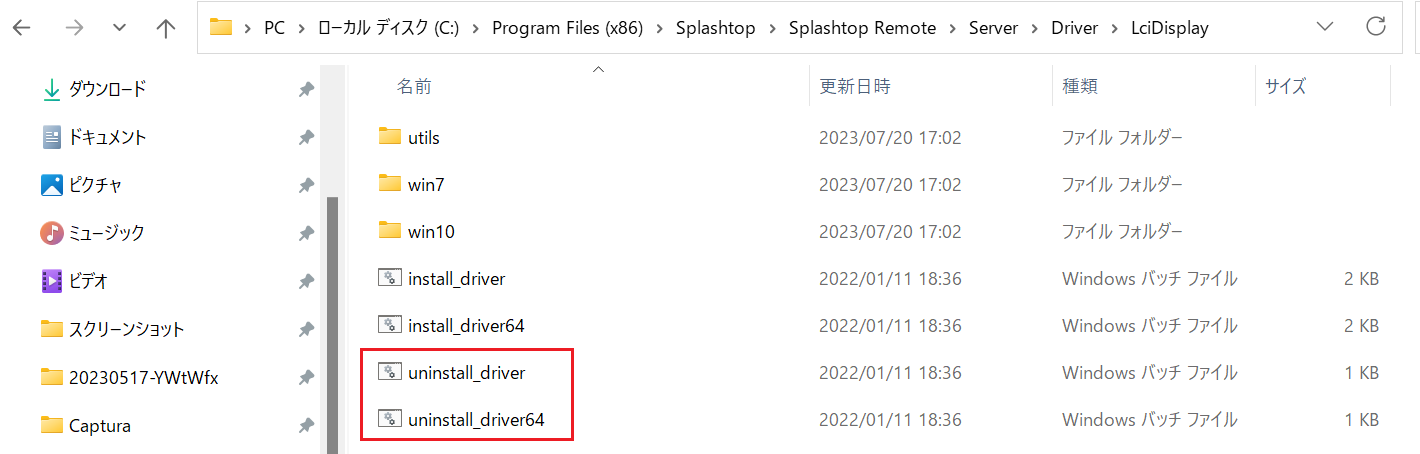

- On the Streamer computer, go to this file path:
C:\Program Files (x86)\Splashtop\Splashtop Remote\Server\Driver\LciDisplay - Right-click "uninstall_driver64.bat" (for 64-bit OS) or "uninstall_driver.bat" (for 32-bit OS) and run as Administrator
For users who tried our beta virtual display tool
In the past, we offered an additional beta virtual display tool upon request. Please note that following the update to Splashtop Streamer version 3.6.8.0, any virtual displays that were previously created using the older tool will be deactivated. Please re-configure these displays using our newly introduced feature.
If you have any further inquiries about the virtual display feature, please don't hesitate to create a ticket through this link: https://support-splashtoponprem.splashtop.com/hc/en-us/requests/new
