In addition to access logs from web console, Splashtop log events can also be sent to a Syslog server or SIEM tool that support Syslog in your local environment. The auditing of Splashtop event logs can be accessed both from Gateway web console, download as CSV or Syslog collectors simultaneously.
1. Configuration

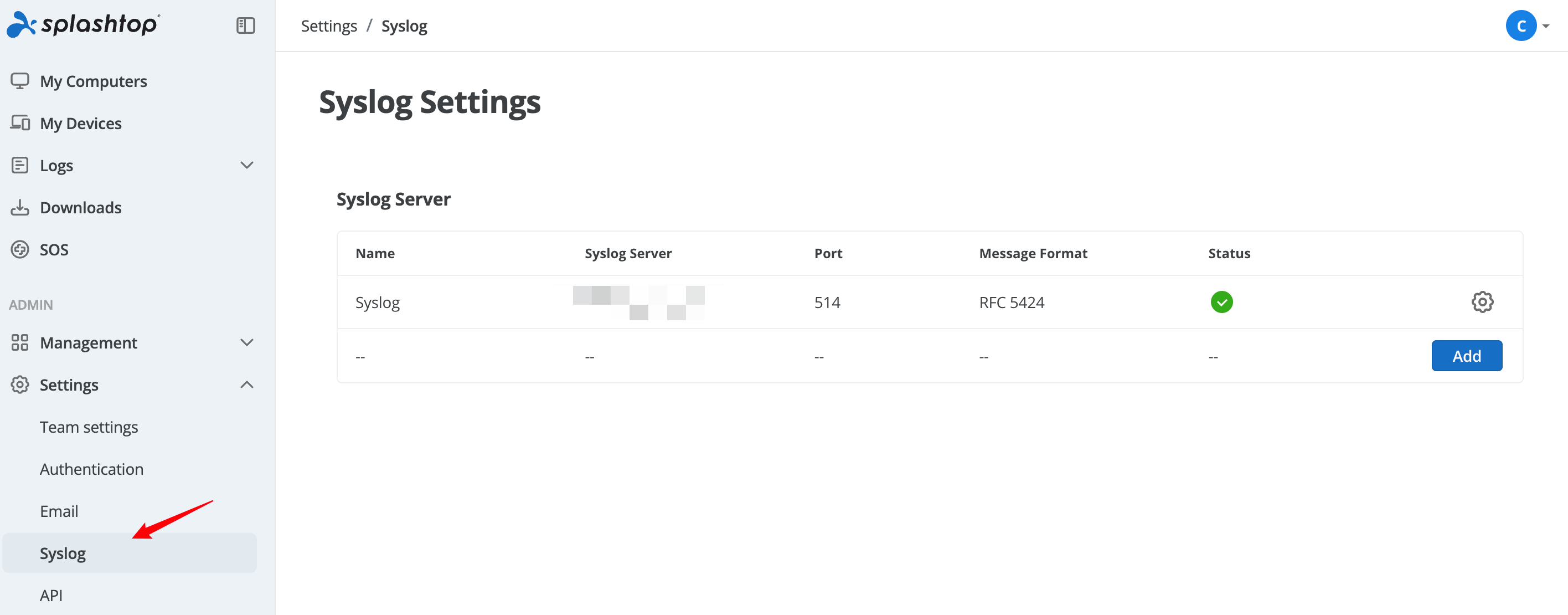

1. To configure Splashtop Gateway as Syslog source, log in web console as Team Owner, go to Management → Team Settings → Syslog.
2. You can configure Gateway to send Syslog messages up to two Syslog servers.
3. Click add to configure your target Syslog server.

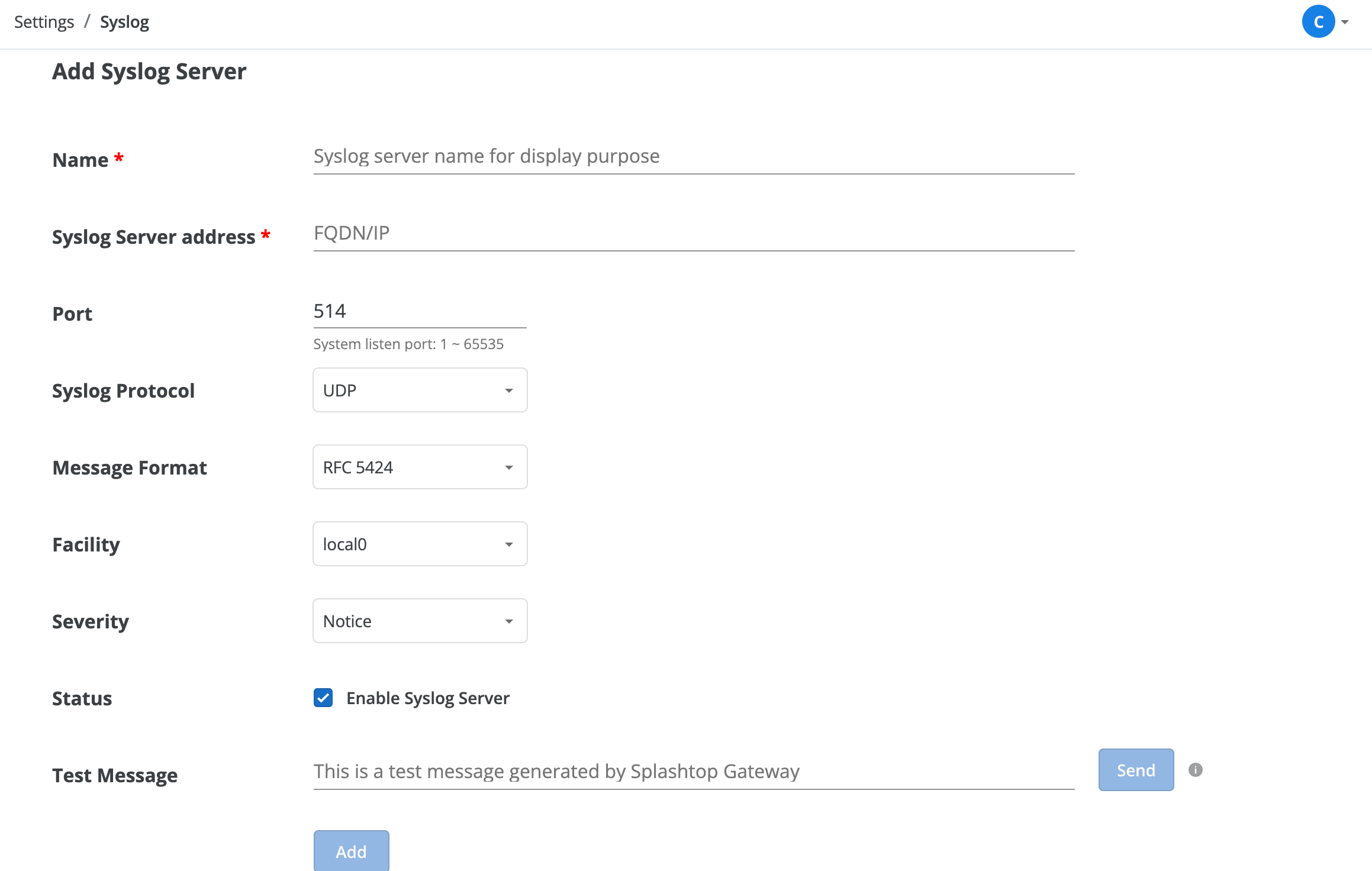

4. Syslog Settings
| Name | Syslog host name in Splashtop Gateway. |
| Syslog Server address | Enter the hostname or IP address of the syslog server receiving log messages. |
| Port | Syslog over UDP defaults to use port 514. The defaults can be changed. |
| Syslog Protocol | Supports UDP or TCP. |
| Message Format | Supports RFC 5424 or RFC 3164 (BSD). |
| Facility | Choose proper facility from local0 - local7. |
| Severity | Choose the proper Syslog severity. |
| Status | Once enabled, Splashtop Gateway starts to send persistent syslog messages to your Syslog Server. |
| Test Message |
Send a message to your Syslog Server to test the above settings. |
2. Syslog Message Format
Header
| Date/Time | Syslog event time |
| PRI | Local0.Notice |
| Hostname | IP/FQDN |
| APP-Name | onpremise.exe |
| PROCID | Process ID |
| MSGID | SOP |
Message Payload
| Parameters | Values | Description |
|
Timestamps |
ISO 8601 timestamp format |
The date and time the event has been triggered. |
|
team_id |
Integer |
Splashtop Team ID. |
|
event |
String |
The specific event was triggered. |
|
account |
String |
The user account that initiated the specific event. |
|
source_address |
String |
The origin IP address in the specific event. |
|
source_agent |
String |
The origin client of the specific event. |
|
source_version |
String |
The origin client version in the specific event. |
|
source_os |
String |
The origin operating system in the the event. |
|
source_name |
String |
The origin client name in the specific event. |
|
target_address |
String |
The target IP address in the event. |
|
target_version |
String |
The target agent version in the event. |
|
target_os |
String |
The target agent platform in the event |
|
target_agent |
String |
The target device type in the event. |
|
target_name |
String |
The target device name in the event. |
|
target_account |
String |
The target user account in the event. |
|
category |
String |
Splashtop events category. |
|
kind |
String |
Splashtop events kind under specific category. |
|
action |
String |
The event operating action type in the event. |
|
result |
String |
Success or failure of the event |
|
extra_result |
String |
The detailed failure reason in the event |
|
target |
String |
The target object in the event. |
|
property |
String |
Additional property in the event |
|
value |
String |
Additional values in the event. |
3. Syslog message examples
Splashtop syslog message examples following standard RFC 5424 format are showing below.
Example 1.
05-13-2022 14:44:54 Local0.Notice 192.168.70.75 1 2022-05-13T14:44:54+05:00 Test-Vistro onpremise.exe 3292 SOP - timestamp=2022-05-13T09:44:54Z;team_id=1;event_id=team_file_transfer_enabled;account=john.doe@example.com;agent=browser;source_address=192.168.67.22;source_name=IE;source_version=110.0.1587;source_os=Windows;category=management;kind=team_mgmt;action=update;result=success;target=remote_support_setting;desc:file_transfer=enabled;
The example indicates event of enabling file transfer function from Team Settings was occurred at a given time by what account with specific IP address and device information.
Example 2.
Below syslog messages were generated by a login attempt to Splashtop web console resulted in failure (2) because a privileged account has enabled browser authentication in an earlier time (1). Then the re-login succussed (4) after the privileged account authenticated this login request from web console (3).
1. 08-22-2022 09:12:35 Local0.Notice 192.168.70.75 1 2022-08-22T09:12:35+05:00 Test-Vistro onpremise.exe 3292 SOP - timestamp=2022-05-13T04:12:35Z;team_id=1;event_id=team_browser_device_auth_enabled;account=john.doe@example.com;agent=browser;source_address=192.168.67.22;source_name=IE;source_version=111.0.1661;source_os=Windows;category=management;kind=team_mgmt;action=update;result=success;target=general_setting;desc:browser_device_auth=enabled;
2. 08-22-2022 09:14:02 Local0.Notice 192.168.70.75 1 2022-08-22T09:14:02+05:00 Test-Vistro onpremise.exe 3292 SOP - timestamp=2022-05-13T04:12:35Z;team_id=1;event_id=login_failure;account=mary.doe@example.com;agent=browser;source_address=192.168.89.176;source_name=Chrome;source_version=110.0.0;source_os=Mac;target_account=mary.doe@example.com;category=auth;kind=user_mgmt;action=login;result=fail;extra_result=need_device_auth;target=mary.doe@example.com;desc:=;
3. 08-22-2022 10:00:37 Local0.Notice 192.168.70.75 1 2022-08-22T10:00:37+05:00 Test-Vistro onpremise.exe 3292 SOP - timestamp=2022-05-13T05:00:37Z;team_id=1;event_id=client_authenticated;account=john.doe@example.com;agent=browser;source_address=192.168.67.22;source_name=IE;source_version=111.0.1661;source_os=Windows;target_addr=192.168.89.176;target_agent=browser;target_version=110.0.0;target_os=Mac;target_name=Chrome;target_account=mary.doe@example.com;category=endpoint;kind=browser;action=authenticate;result=success;desc:method=web console;
4. 08-22-2022 10:08:22 Local0.Notice 192.168.70.75 1 2022-08-22T10:08:22+05:00 Test-Vistro onpremise.exe 3292 SOP - timestamp=2022-05-13T05:08:22Z;team_id=1;event_id=login;account=mary.doe@example.com;agent=browser;source_address=192.168.89.176;source_name=Chrome;source_version=110.0.0;source_os=Mac;target_account=mary.doe@example.com;category=auth;kind=user_mgmt;action=login;result=success;extra_result=;target=mary.doe@example.com;desc:=;
